Application

Compatible for Iveco Daily 35S 2006-2014 RWD, compatible for FWD
Compatible for Iveco Daily 35L 2006-2014 RWD, compatible for FWD

Specification

Condition: Brand New
Charge: 8800 LB / 4000 KG
Placement on Vehicle: Rear left and right
Air spring---
Stroke: 140mm
Max. Extended: 230mm
Min. Compressed: 90mm
Minimum height of whole kit: 284 mm
Maximum height of whole kit: 424 mm
Operating Pressure : ≤2.0Mpa
Temperature range：≤+70° , ≥-40°
Air pump---
Power: 150W
Output Voltage: 12V
Maximum Working Voltage: 10bar（1MPa ）
Package includes（as the picture shows）:

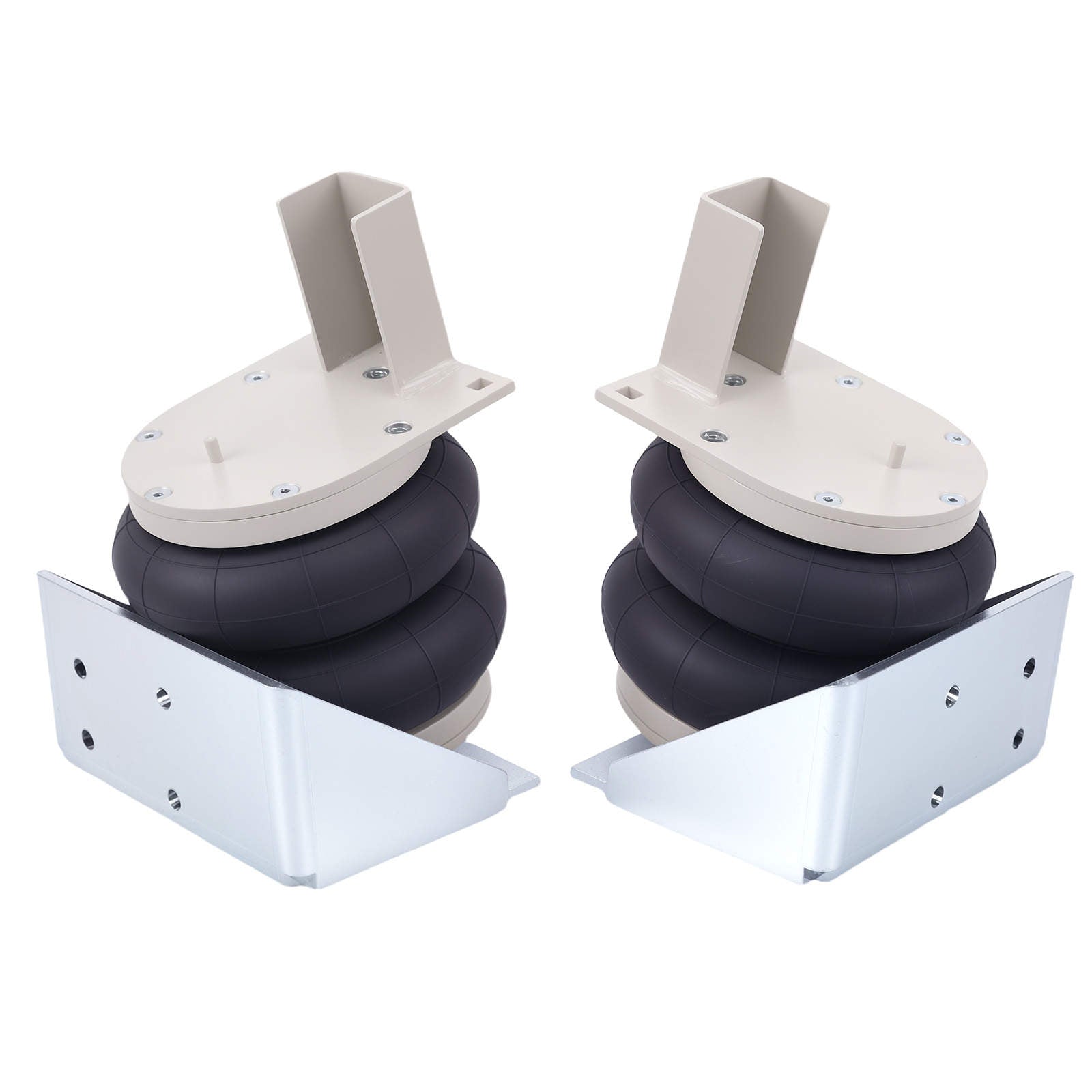

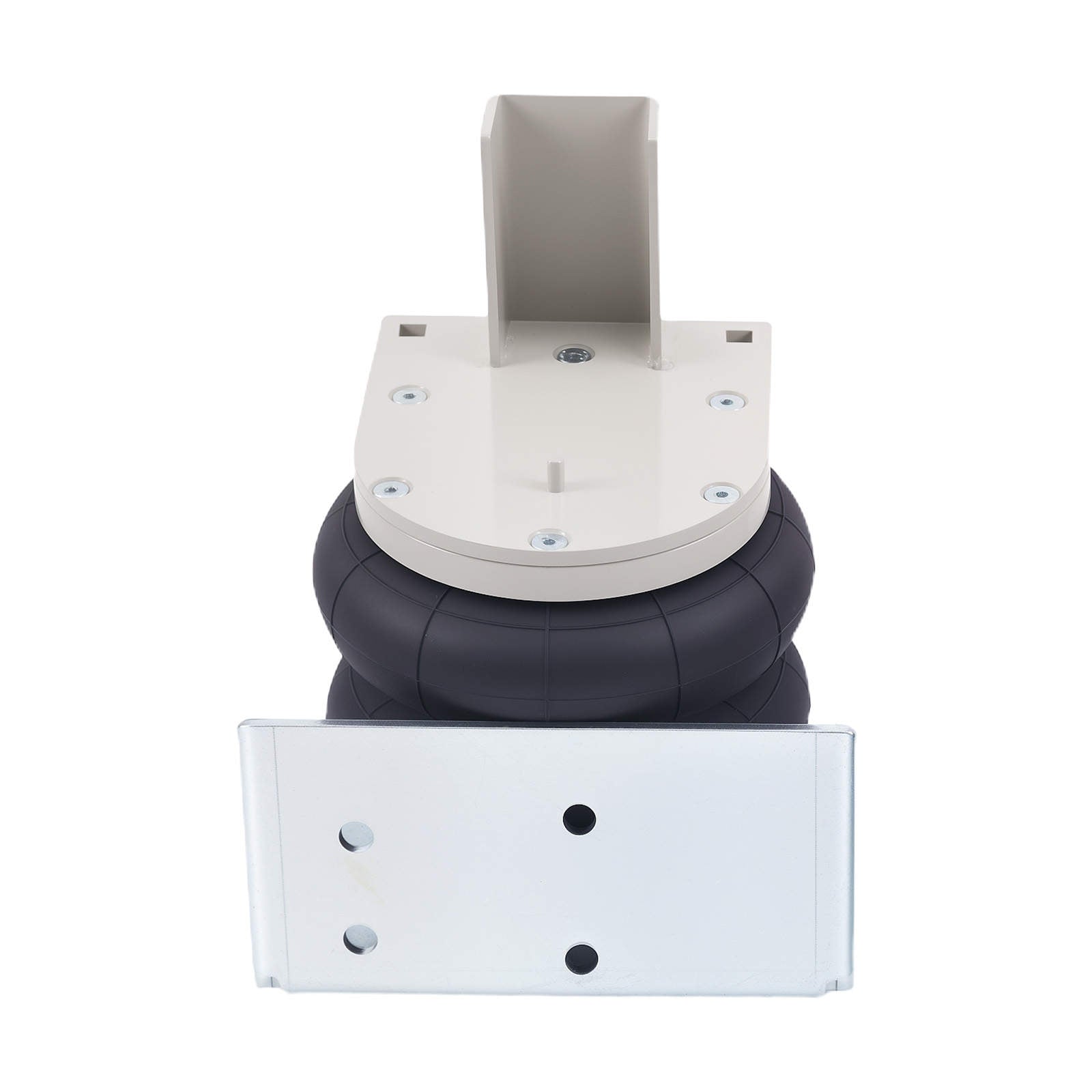

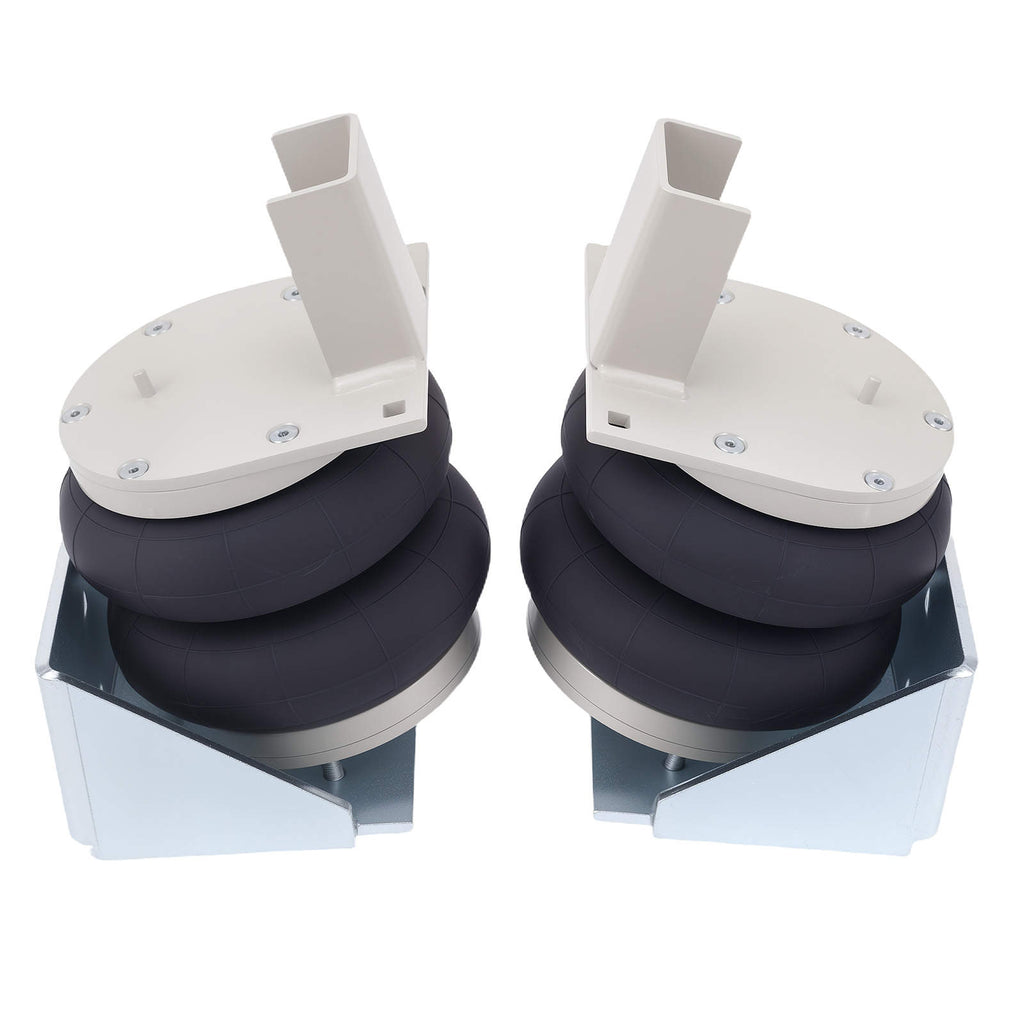

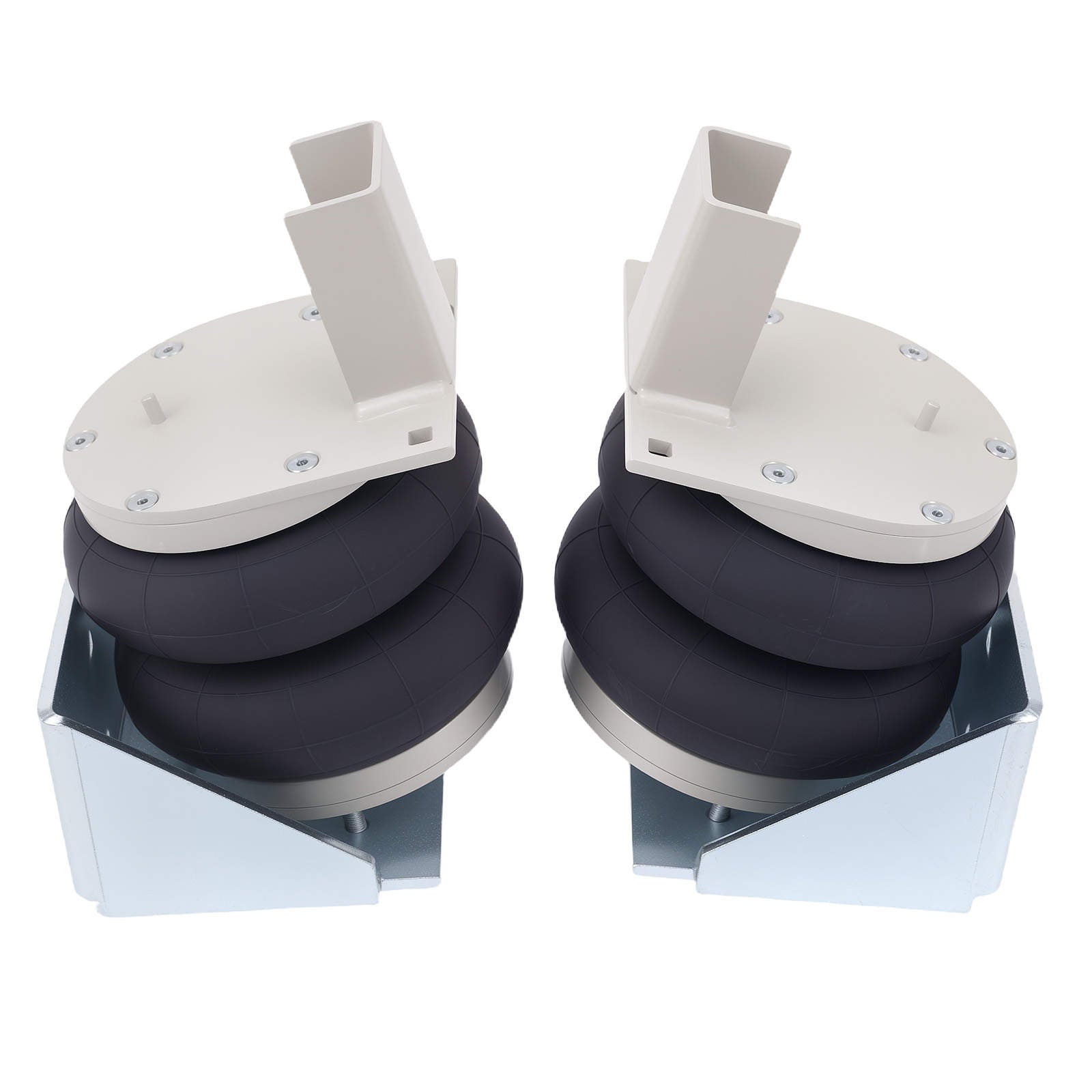

2x Air spring

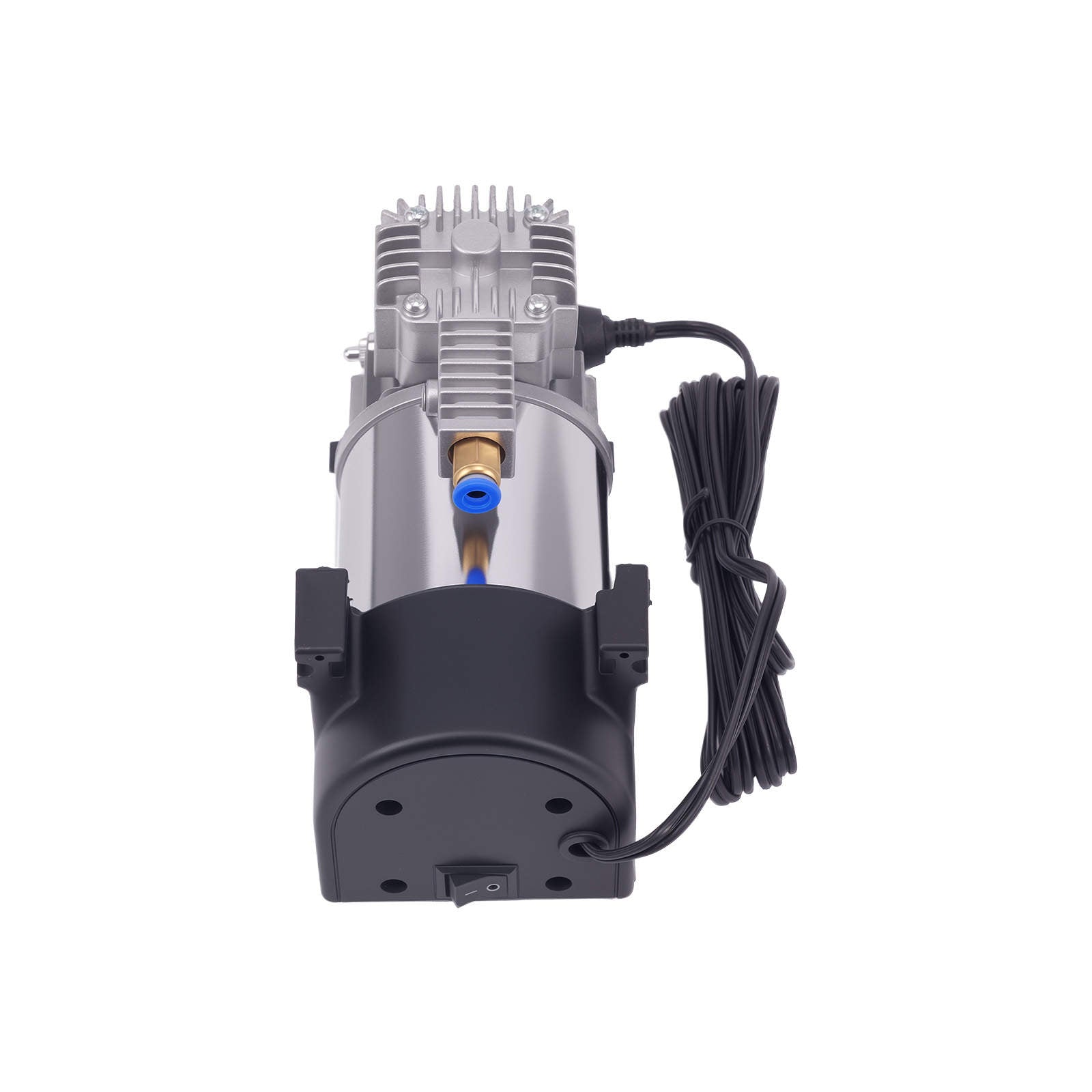

1x Air suspension compressor
1x Dual panel gauge
4x Mounting bracket
4x Air fitting

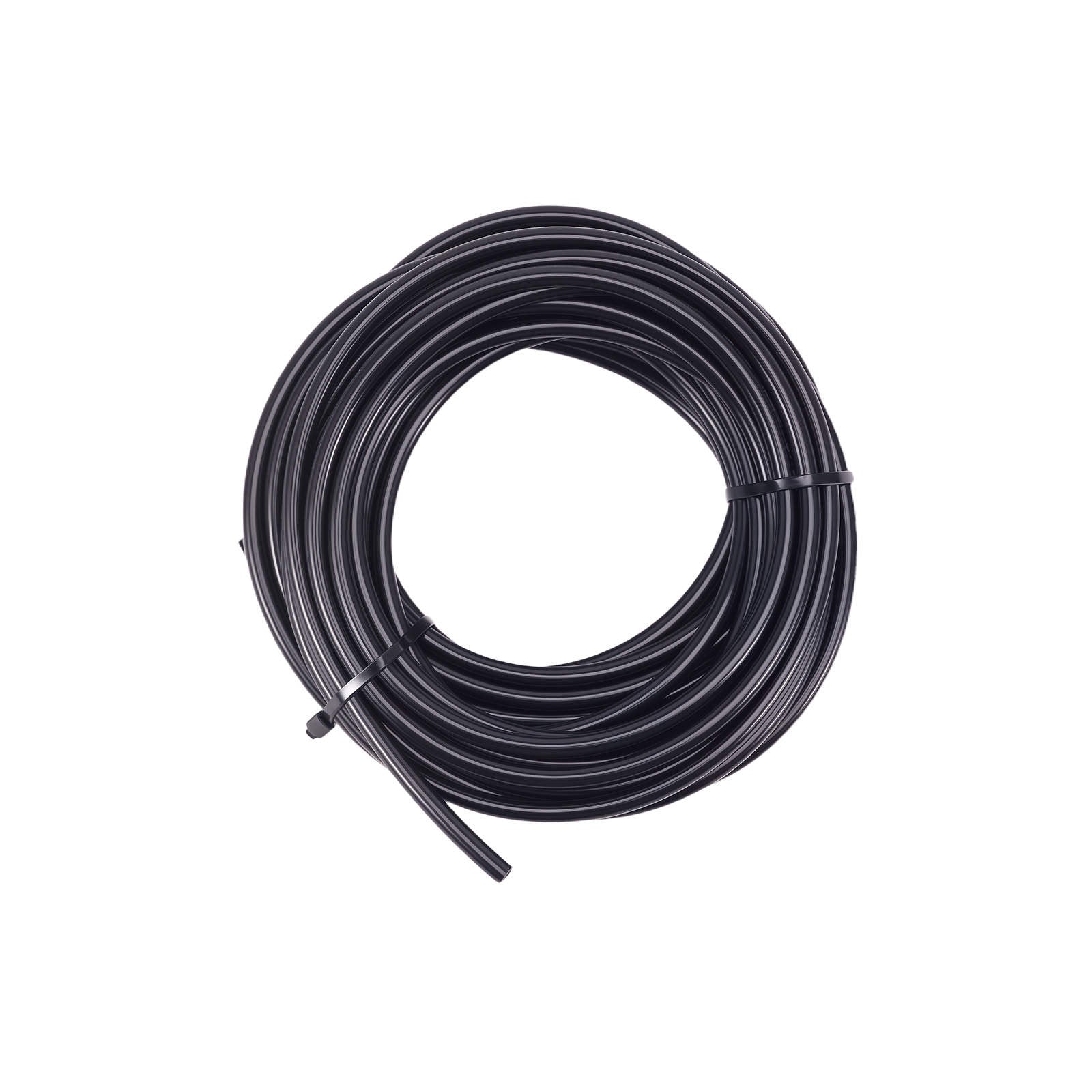

1x Air line 13m
Mounting bolts and gaskets

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5. 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity and long life.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
