Application

Compatible for Vauxhall Movano 2010-2020 compatible for FWD
Compatible for Renault Master 2010-2020 compatible for FWD
Note:For standard chassis types except AL-KO chassis.

Specification

Condition: Brand New
Chassis Type: All standard type Chassis
Placement on Vehicle: Rear left and right
Max loading：4000 Kg
Air spring---
Design height: 172 mm
Max Height: 230 mm
Min Height: 90 mm
Stroke: 140 mm
Air pump---
Power: 150W
Output Voltage: 12V

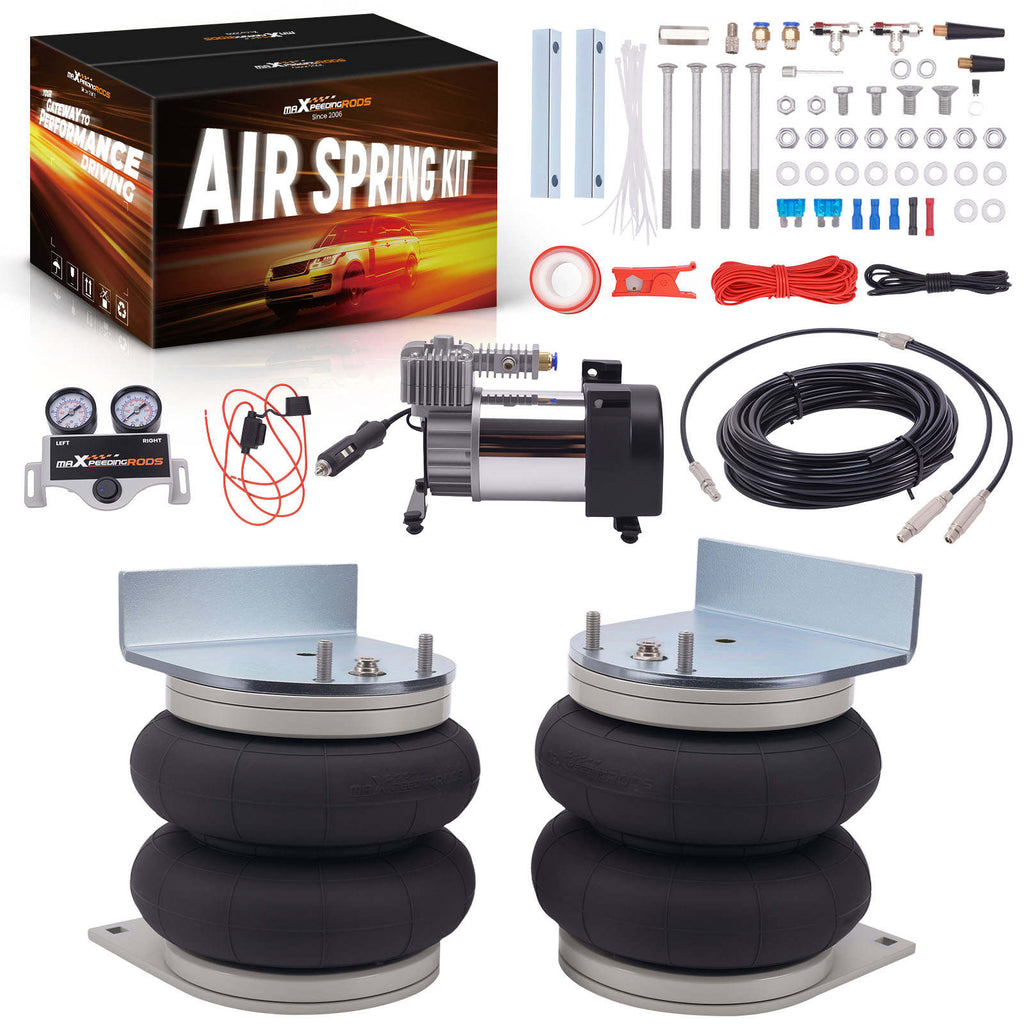

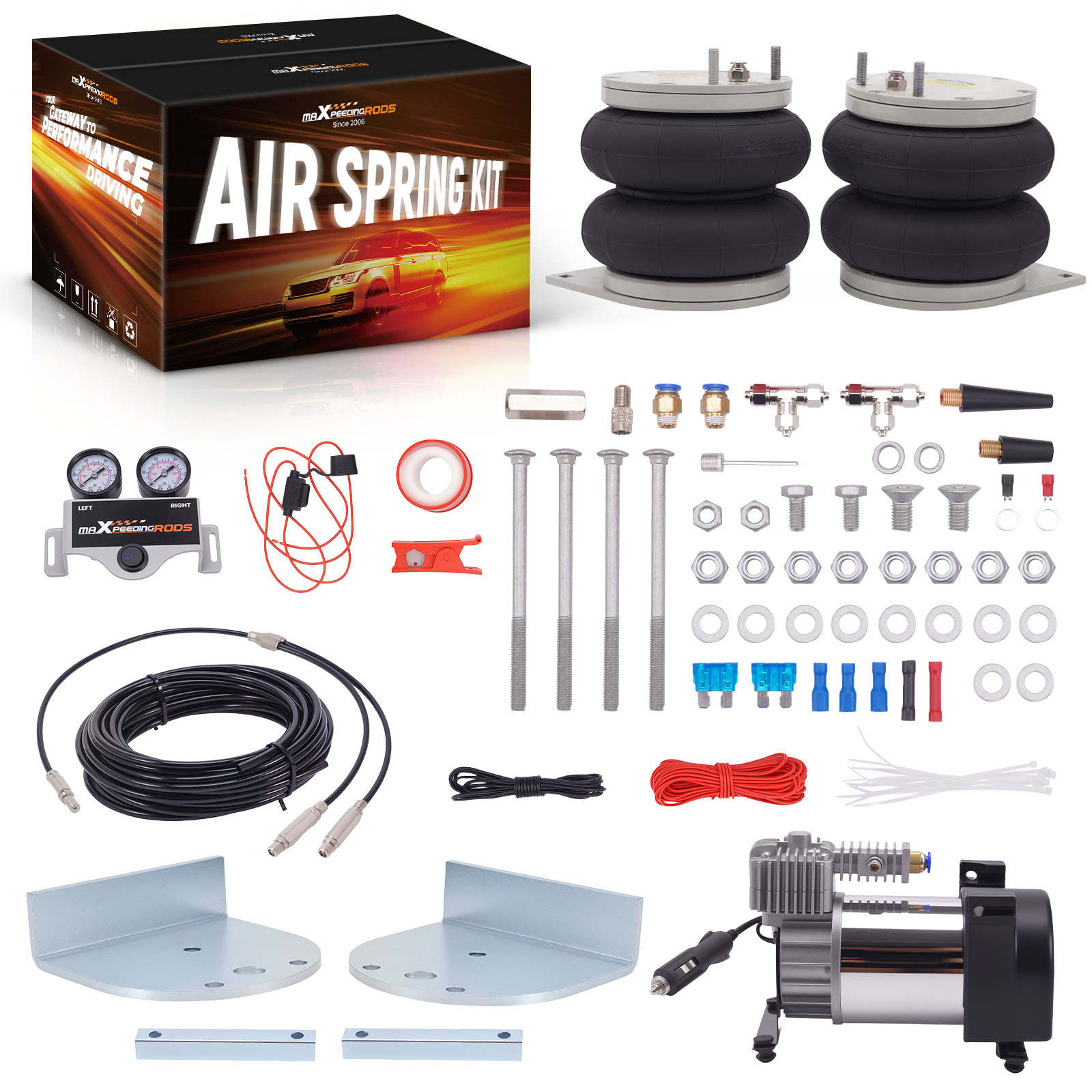

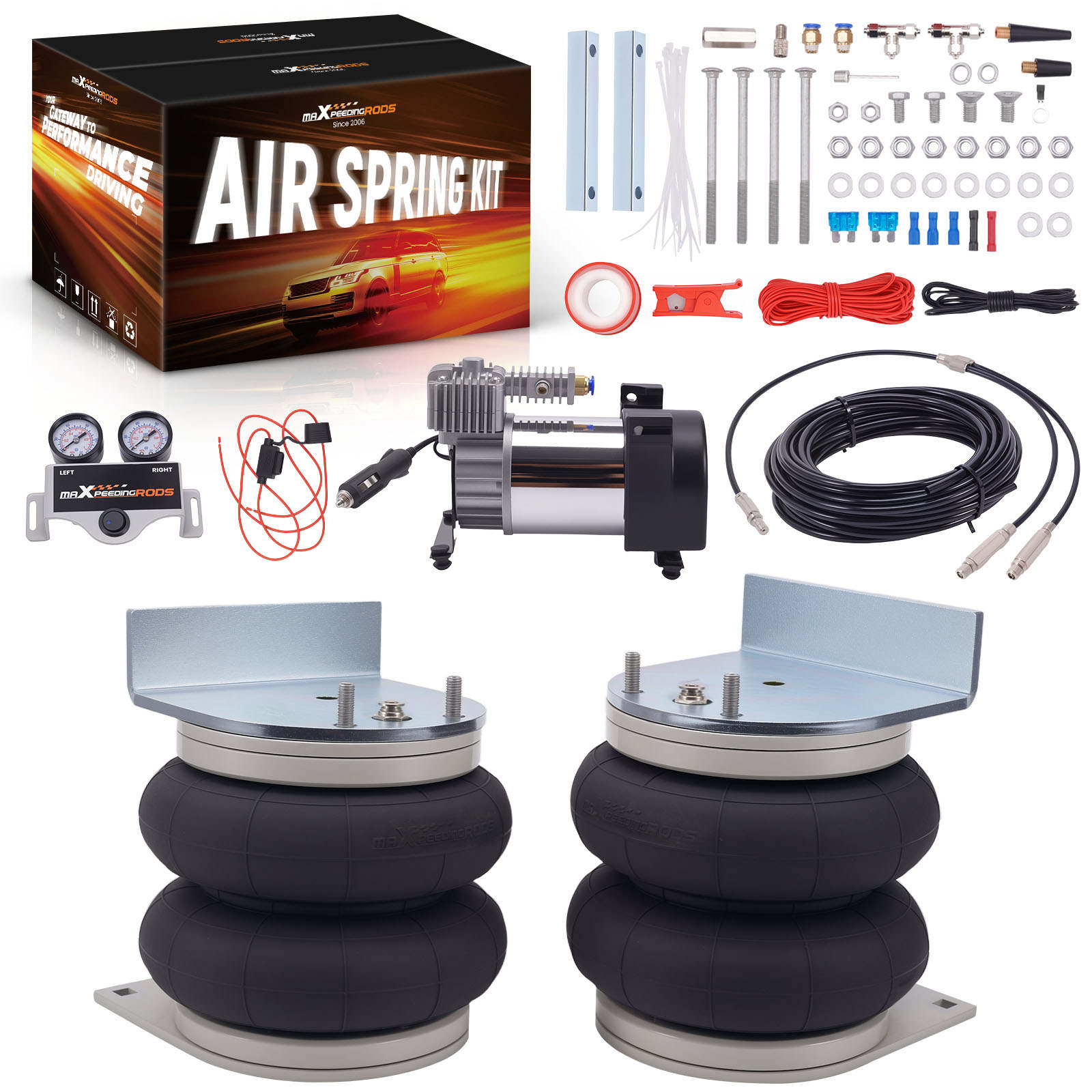

Package includes（as the picture shows）:
2x Air spring
1x Air suspension compressor

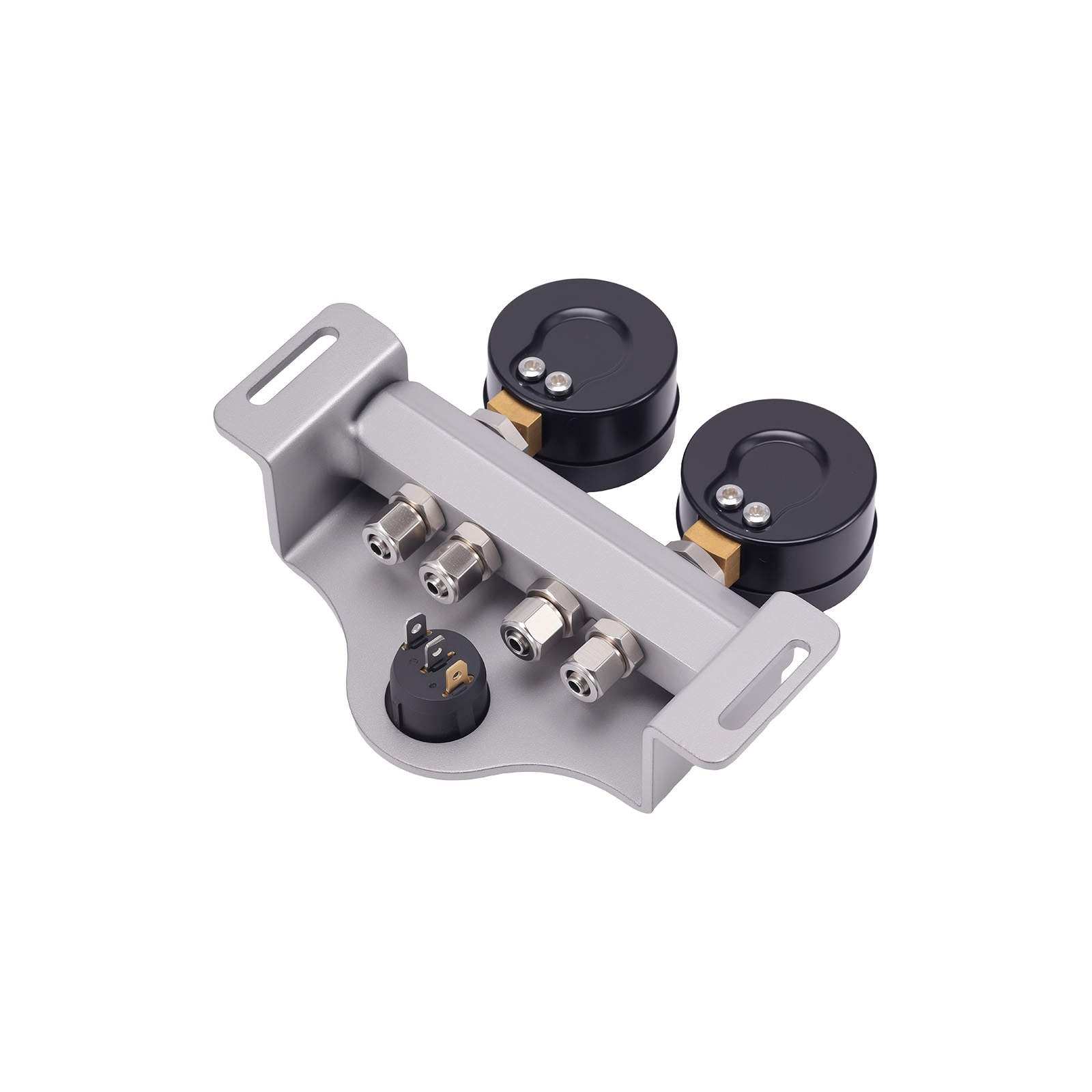

1x Dual panel gauge
4x Mounting bracket
1x Air line 11.5m
1x Fuse harness
1x Y-type air line connector

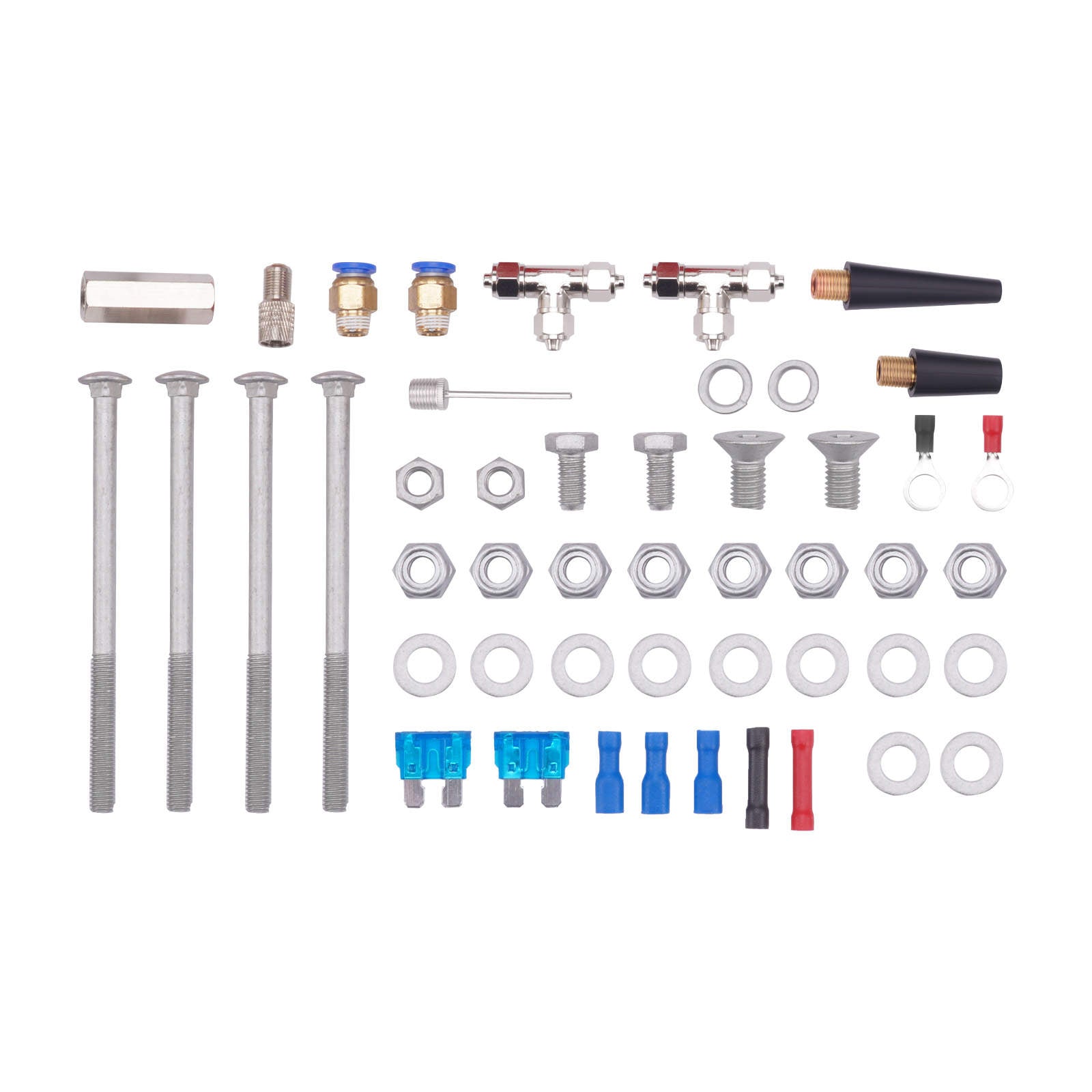

Mounting bolts and Air fittings

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5、 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity and long life.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
