Introduction

MaXpeedingRods T6 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.

Application

Compatible For BMW 3 (E46) 4-door sedan 318i; 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)

Compatible For BMW 3 2-door Convertible (E46) 318i; 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)

Compatible For BMW 3 2-door Coupe (E46) 318i; 320ci; 325ci; 330ci;320cd; 330cd;  (02/1999-12/2006)

Compatible For BMW 3 Touring 5-door wagon/estate (E46) 316i; 318i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)

Note: not for Xi/xd  4 wheel drive, not for M3 model either

Specifications

Front top mounts: pillow ball top mount with camber plate

Rear top mounts: pillow ball top mounts

Damping: 24 levels rebound damping adjustable

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 180mm

Spring length Rear: 183mm

Coilover overall length Front: 440-470mm

Coilover overall length Rear: 450-535mm

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: black body with blue spring

Warranty: one year warranty for any manufacturing defect

Package included

complete coilover kit

2 front and 2 rear

a pair wrench

Dimension

weight：25360g

size：63*51*21 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.

4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

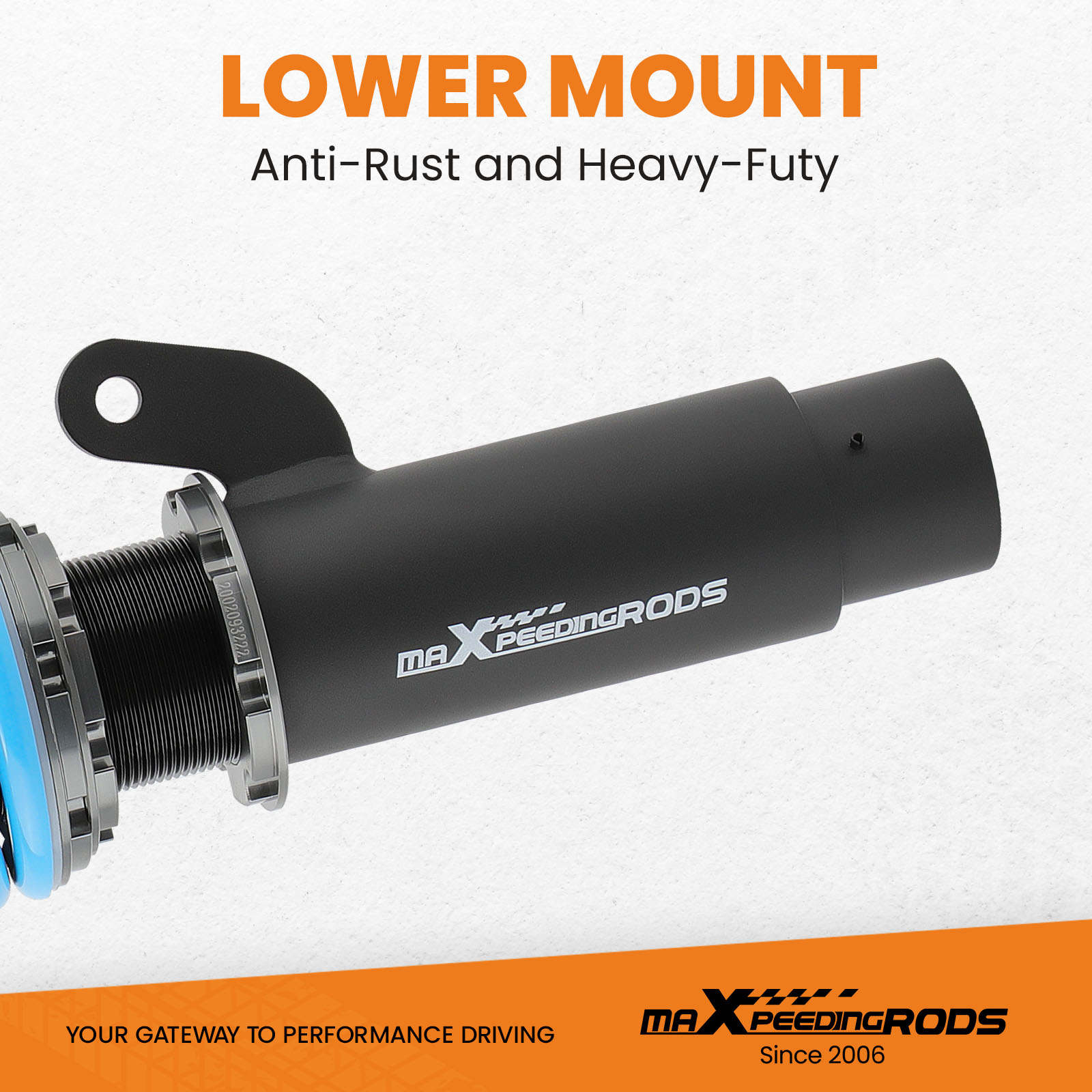

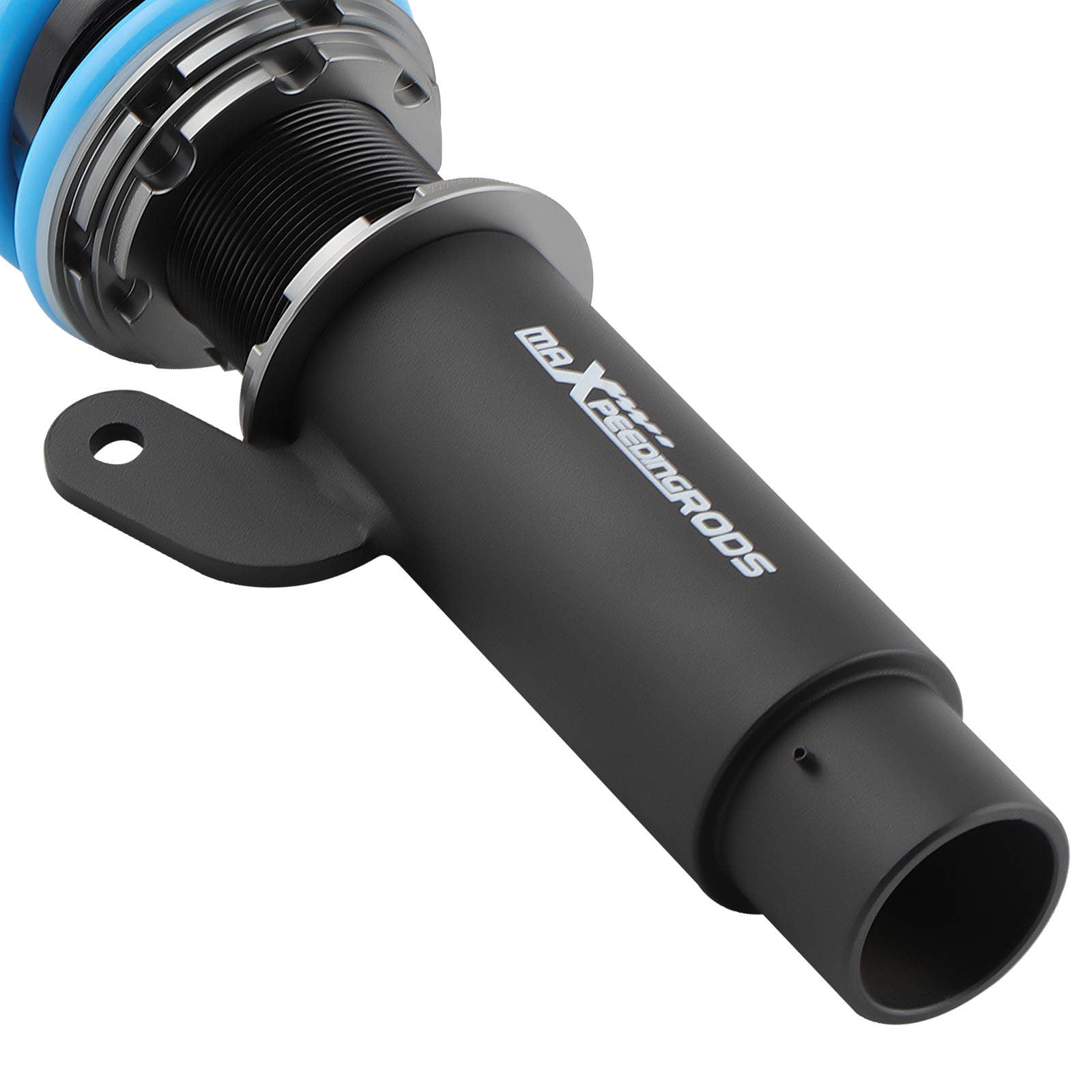

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

7. Upgraded spring --- more than 600,000 times continuously test to assure it’s high tensile strength.

8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

9. With better damping setting, you will get better performance and comfort at the same time.

10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

11. Corrosion Finish - Anodized Aluminum and Powder Coated Carbon Steel Parts

12. Test for the best---All parts were tested on our professional machine before assembled and tested by our professional racers on road.

13. Clean room assembled---maintain higher level of accuracy and reliability.

14. Upgraded damper oil---make damping more stable and smoother in wide temperature range.

Note

Caution: OE shims need to be installed on the rear eye bolt bushings.
