4x Forged 4340 EN24 H-Beam Connecting Rods compatible for MAZDA 2.0L FS FS-DE Capella 135mm
4x Forged 4340 EN24 H-Beam Connecting Rods compatible for MAZDA 2.0L FS FS-DE Capella 135mm
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Application
Compatible for MAZDA 2.0L FS FS-DE ENGINE
Compatible for Mazda 626 1993–2002
Compatible for Mazda MX-6 1993–1997
Compatible for Mazda MPV (Japan) 1999–2001
Compatible for Mazda Capella 1999–2003
Compatible for Mazda Protegé 2001–2003
Compatible for Ford Probe 1993–1997
Compatible for Ford Telstar 1993–1999
Compatible for Kia Carens 1999-2006
Pin Type: Floating Pin Piston
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

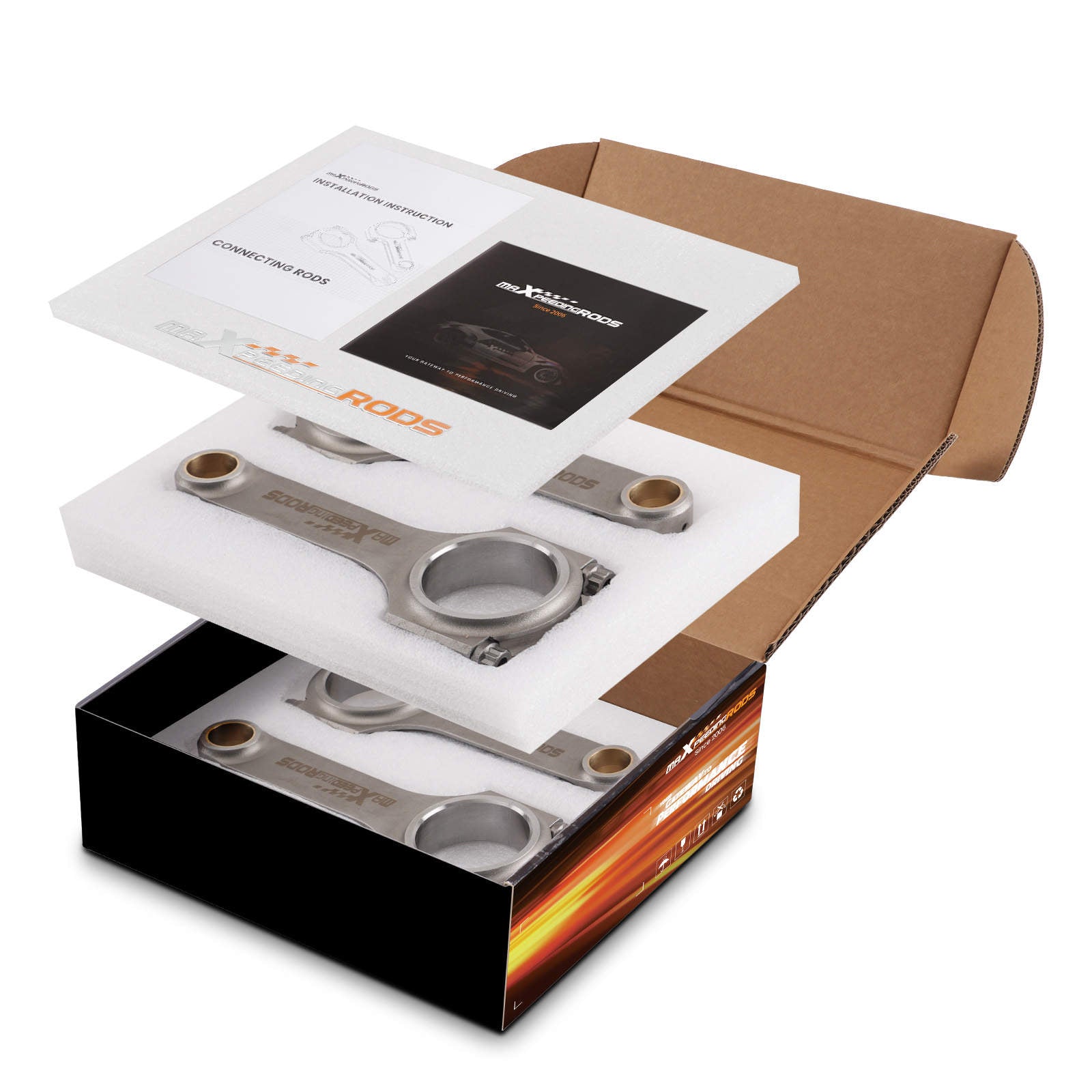

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Center to center length:135mm/5.315"
Big end diameter:51mm/2.008"
Small end diameter:19mm/0.748"
Big end width:21.79mm/0.858"
Small end width:21.79mm/0.858"
Feature
1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Application
Compatible for MAZDA 2.0L FS FS-DE ENGINE
Compatible for Mazda 626 1993–2002
Compatible for Mazda MX-6 1993–1997
Compatible for Mazda MPV (Japan) 1999–2001
Compatible for Mazda Capella 1999–2003
Compatible for Mazda Protegé 2001–2003
Compatible for Ford Probe 1993–1997
Compatible for Ford Telstar 1993–1999
Compatible for Kia Carens 1999-2006
Pin Type: Floating Pin Piston
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Center to center length:135mm/5.315"
Big end diameter:51mm/2.008"
Small end diameter:19mm/0.748"
Big end width:21.79mm/0.858"
Small end width:21.79mm/0.858"
Feature
1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
