4340 Forged H-Beam Connecting Rods ARP2000 Bolts compatible for Audi VW EA888 2.0L TSI 23mm
4340 Forged H-Beam Connecting Rods ARP2000 Bolts compatible for Audi VW EA888 2.0L TSI 23mm
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Application
Compatible for Audi/VW EA888 1.8L & 2.0L TSI/TFSI Gen 3 Engine
Specification
Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Dimension
Connecting Rod Length Center to Center: 144.00mm/5.669in
Approximate Connecting Rod Weight: 581g
Big End Bore Diameter: 50.60mm/1.992in
Pin End Bore Diameter: 23.00mm/0.906in
Big End Width: 21.90mm/0.862in
Small End Width: 21.90mm/0.862in

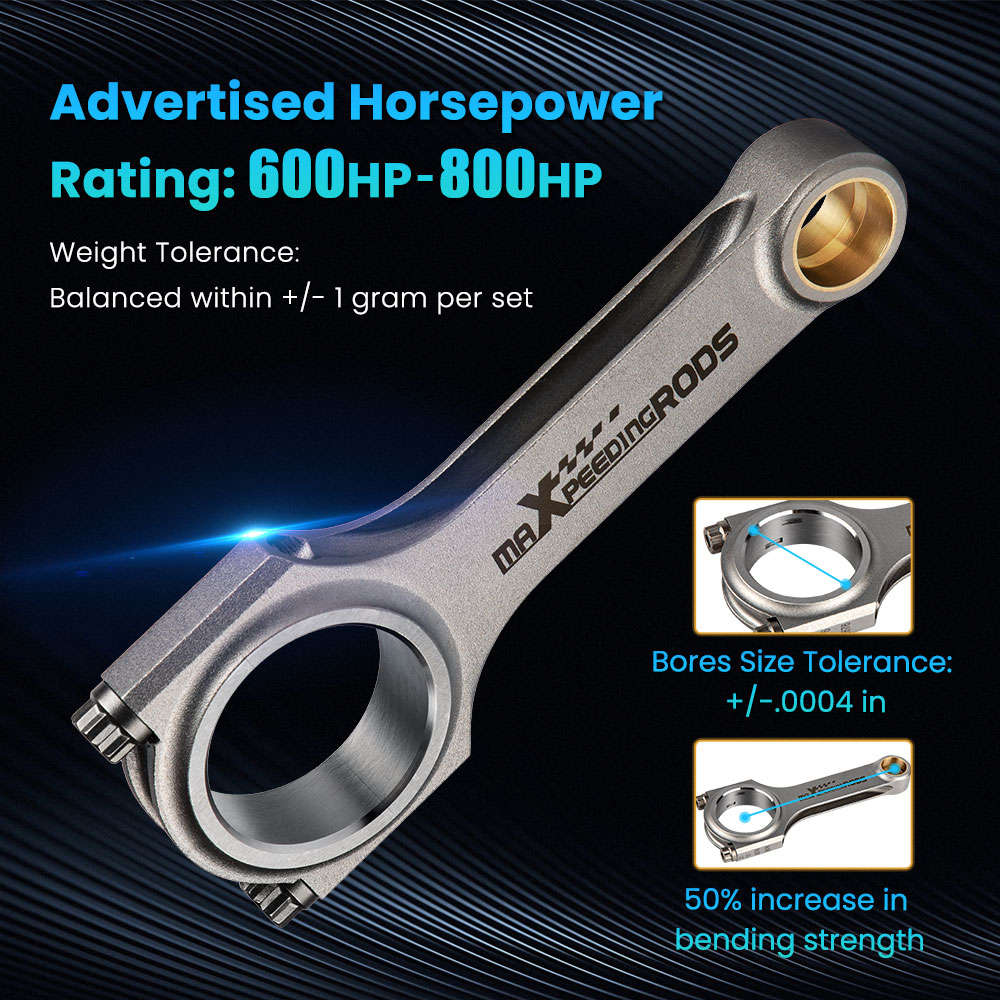

Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm

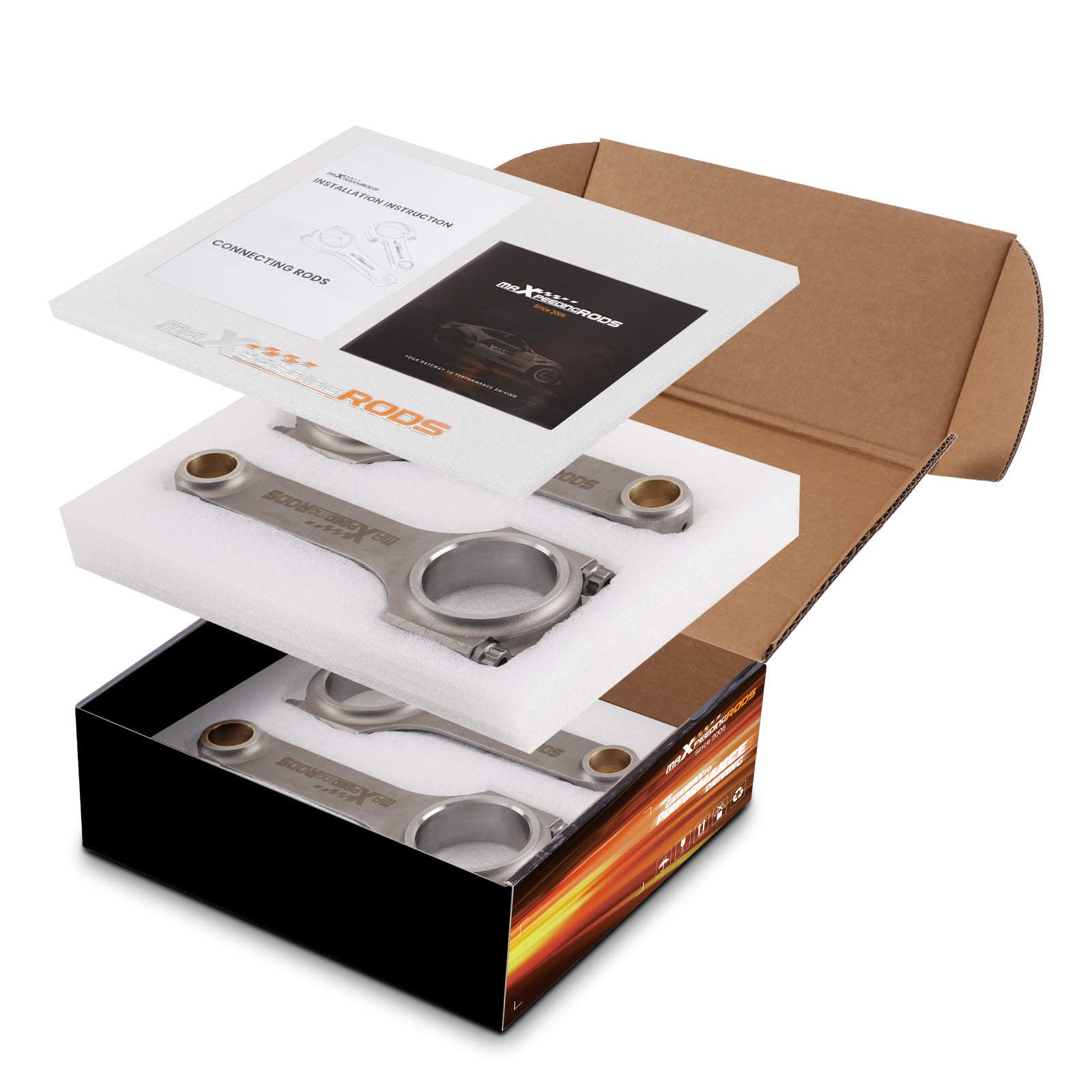

Packaging
Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
