Front Coilover Kit compatible for Mazda MX-5 / Miata NA NB 1990 - 2005

Dit MaXpeedingRods onderdeel is geschikt voor Mazda-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Introductionma Xpeedingrods-B3 is based on ma Xpeedingrods-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.Toepassing Geschikt voor MAZDA MX-5 I (NA) (09/1989-04/1998)

Geschikt voor MAZDA MX-5 II (NB) (01/1998-10/2005)

Geschikt voor Mazda Miata MX-5 NA (1.6L,1.8L) 1989-1997

geschikt voor Mazda Miata MX-5 NB (1.6L,1.8L) 1998- 2005

geschikt voor Mazda Miata Base Convertible 2D 1990-1997

geschikt voor Mazda Miata Base Convertible 2D 1999-2005

geschikt voor Mazda Miata SE Convertible 2D 2000-2003

geschikt voor Mazda Miata LE Convertible 2D 1993

geschikt voor Mazda Miata M Edition Convertible 2D 1994-1997

geschikt voor Mazda Miata STO Convertible 2D 1997

geschikt voor Mazda Miata 10th Anniversary Convertible 2D 1999

geschikt voor Mazda Miata LS Convertible 2D 2000-2005 Specificaties Front top mount: Pillow ball

Damping adjustable: Available, 24 levels of rebound damping force

Camber adjustable: Not available

Height adjustable: Yes

Spring Rate Front: 7 kg/mm (392 lbs/in)

Front spring inner diameter: 70.5 mm

Spring length Front: 180 mm

Spring Preload advised: 7-10 mm

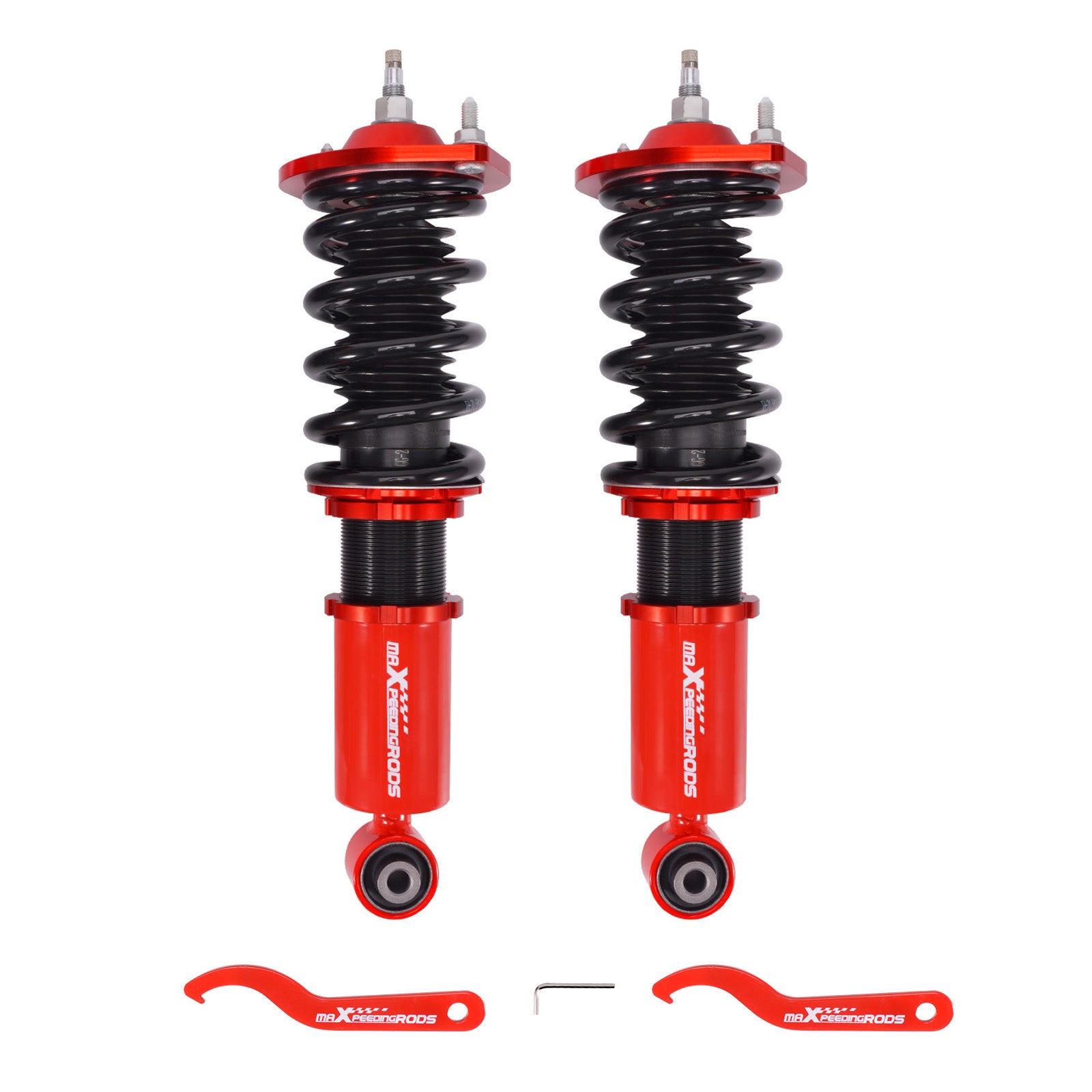

Color: Red body with black spring Package included Package included：

2x Front coil-overs

1x Allen wrench

2x C spanners Dimension Package size : 73*26*19 cm

Weight: 11950 g Kenmerken1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

5. CNC machined Aluminumtop mounts and lockers-- - excellent strength, and save weight

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

7. High tensile spring---600,000 times continuously test to assure its high tensile strength.

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts Let op1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.Notice Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
