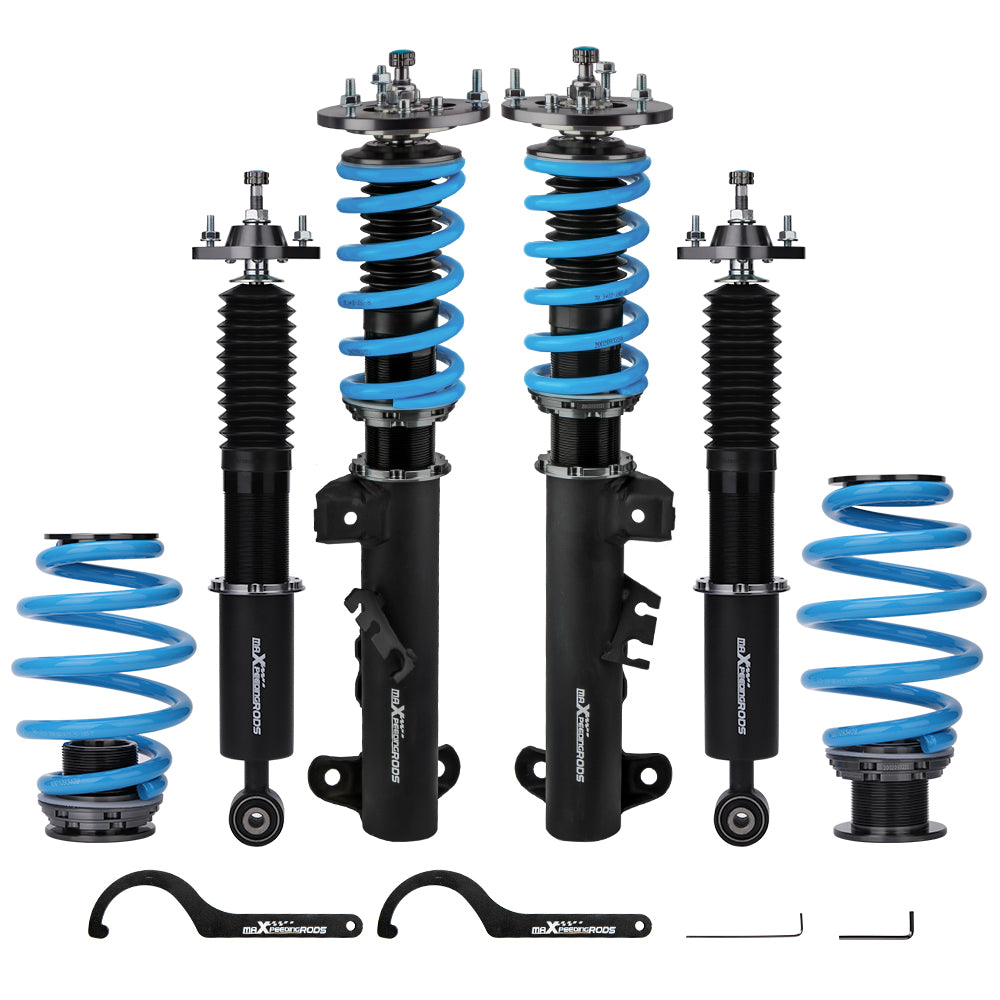

Compatible for BMW E36 M3 3 Series Suspension Struts Adjustable Damper Coilover Coilovers Lowering Kit

Dit MaXpeedingRods onderdeel is geschikt voor BMW-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Introductionma Xpeedingrods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.Toepassing Geschikt voor BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; M3 (09/1990-12/1998)

Geschikt voor BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 323is; 325i; 328i; M3 (09/1991-04/1999)

Geschikt voor BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; M3 (03/1993-04/1999)

Geschikt voor BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)Specificaties Front top mounts: pillow ball top mount with camber plate

Rear top mounts: pillow ball top mount

Damping adjustable: Available, 24 levels of rebound damping force

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 180mm

Spring length Rear: 183mm

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Coilover overall length Front: 560mm-683mm

Coilover overall length Rear: 520mm-615mm

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: Black body with blue spring Package included Package included：

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

1 x Pair of wrenches for height adjustment Dimension Package dimension: 71*51*21 cm

Weight: 27800g Kenmerken1. Lowered height adjustment from 25-75mm which allow lower center of gravity and also add a more aggressive stance.

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Front Camber plate top mounts help to eliminate the need for a separate camber kit.

4. Pillow ball top mounts - It improves the steering feel and response.

5. Full length dust boot keeps shaft and oil seal from damage.

6. Upgraded damper adjust knob makes damping setting easier.

7. Upgraded valving for smoother ride.

8. Twin-Tube structure allows sufficient stroke within the shock absorber.

9. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.

10. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.

11. Decent appearance benefits from CNC machined parts and special surface treatment.

12. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.

13. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

14. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

15. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.
