Compatible for BMW 5 Series E39 1996- 2003 Shock Adjustable Height Suspension Kit Coilovers Lowering Kit

Dit MaXpeedingRods onderdeel is geschikt voor BMW-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Introduction Ma Xpeedingrods-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),which offer you a lowered stance, and improved performance for your daily use vehicle.Toepassing Geschikt voor BMW 5 (E39) (1995-2003)RWD notchback

model:525 i，530 i，540 i， 520 d，520 i，523 i，525 td，525 tds，528 i 525 d，530 d，535 i

Let op: Not for Wagon or M5 Models

Will not fit Self Leveling/Air suspension model Specificaties Front top mount: Pillow ball with camberplate

Rear top mount: Standard rubber

Damping adjustable: Not available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Camber adjustable: Available

Spring rate Front: 12 kg/mm(672 lbs/in)

Spring rate Rear: 9 kg/mm (504 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 190 mm

Spring length Rear: 190 mm

Spring Preload advised: 7-10 mm

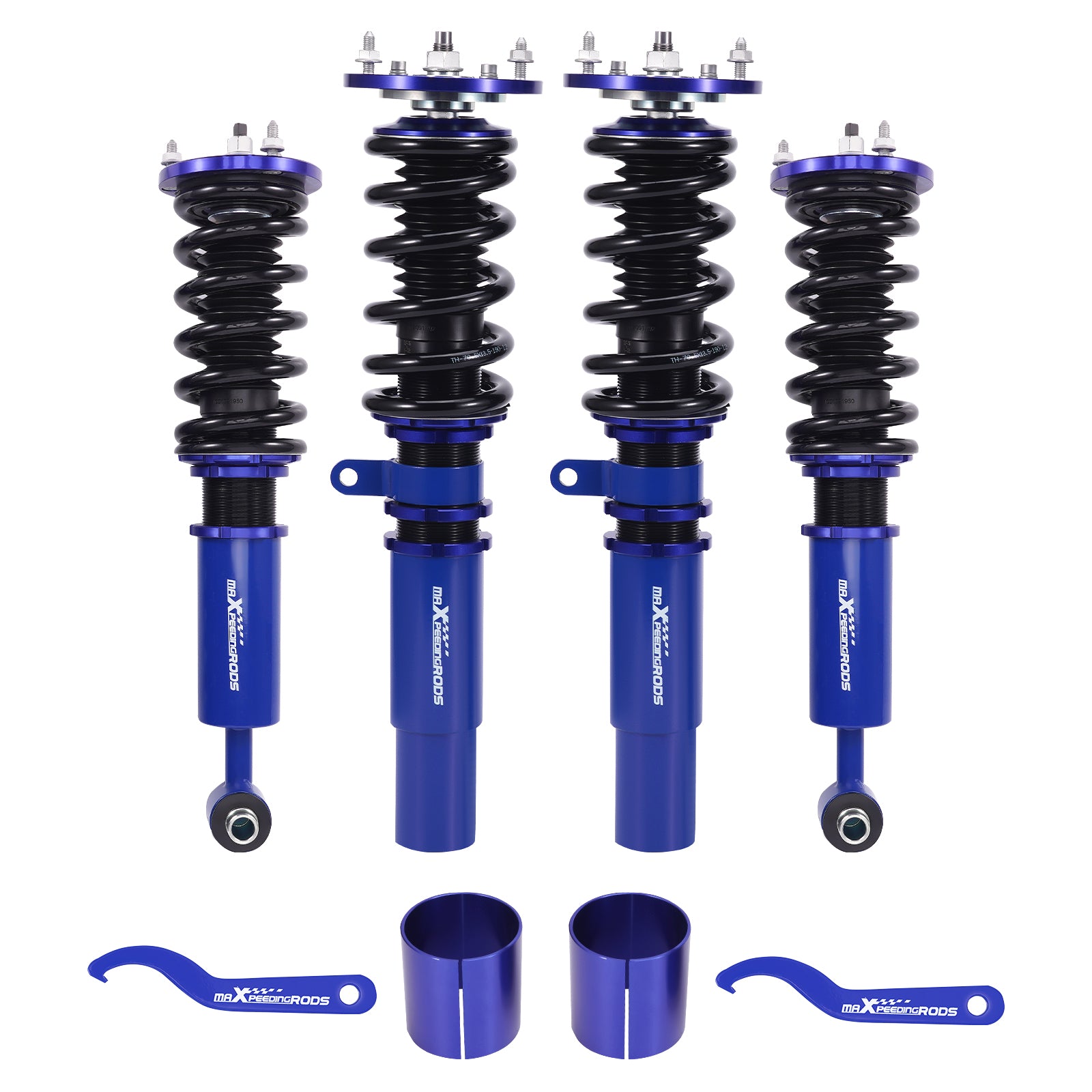

Color: Blue body with black spring Package included Package included：

2x Front coil-overs

2x Rear coil-overs

2x Lower mount washers

2x C spanners Dimension Package dimension : 70*51*21 cm

Weight: 26450 g Kenmerken1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminumtop mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts Let op1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.Notice Notice:

1. Installation Requirement: Use spacers to prevent movement of rubber boots when installing eye-type coilovers.

2. Regular Inspection: Rubber boots typically last 1-3 years, depending on factors such as vehicle weight, road conditions, climate, and driving habits.Inspect them every six months or during routine maintenance, and replace them immediately if any damage or signs of aging are observed.

3. Garantie Coverage Notice: Normal wear and tear on rubber components is not covered by warranty.
