Compatible for BMW 3-Series E36 1990-1999 Maxpeedingrods Shock Absorbers Front and Rear Coilover Suspension Kit Lowering Kit

Dit MaXpeedingRods onderdeel is geschikt voor BMW-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Introduction MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob on the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.You will experience better ride quality in all road conditions.Toepassing Geschikt voor BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; (09/1990-12/1998)Geschikt voor BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 323is; 325i; 328i; 328is(09/1991-04/1999)Geschikt voor BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; (03/1993-04/1999)Geschikt voor BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)Specificaties Top mounts: pillow ball top mounts with camber plate

Damping: 24 levels rebound damping adjustable

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 180mm

Spring length Rear: 183mm

Adjustable height: lowering 1-3inch

Coilover overall length Front: 560mm-683mm

Coilover overall length Rear: 450mm-535mm

Shock type: Twin tube

Spring Preload: 7-10 mm

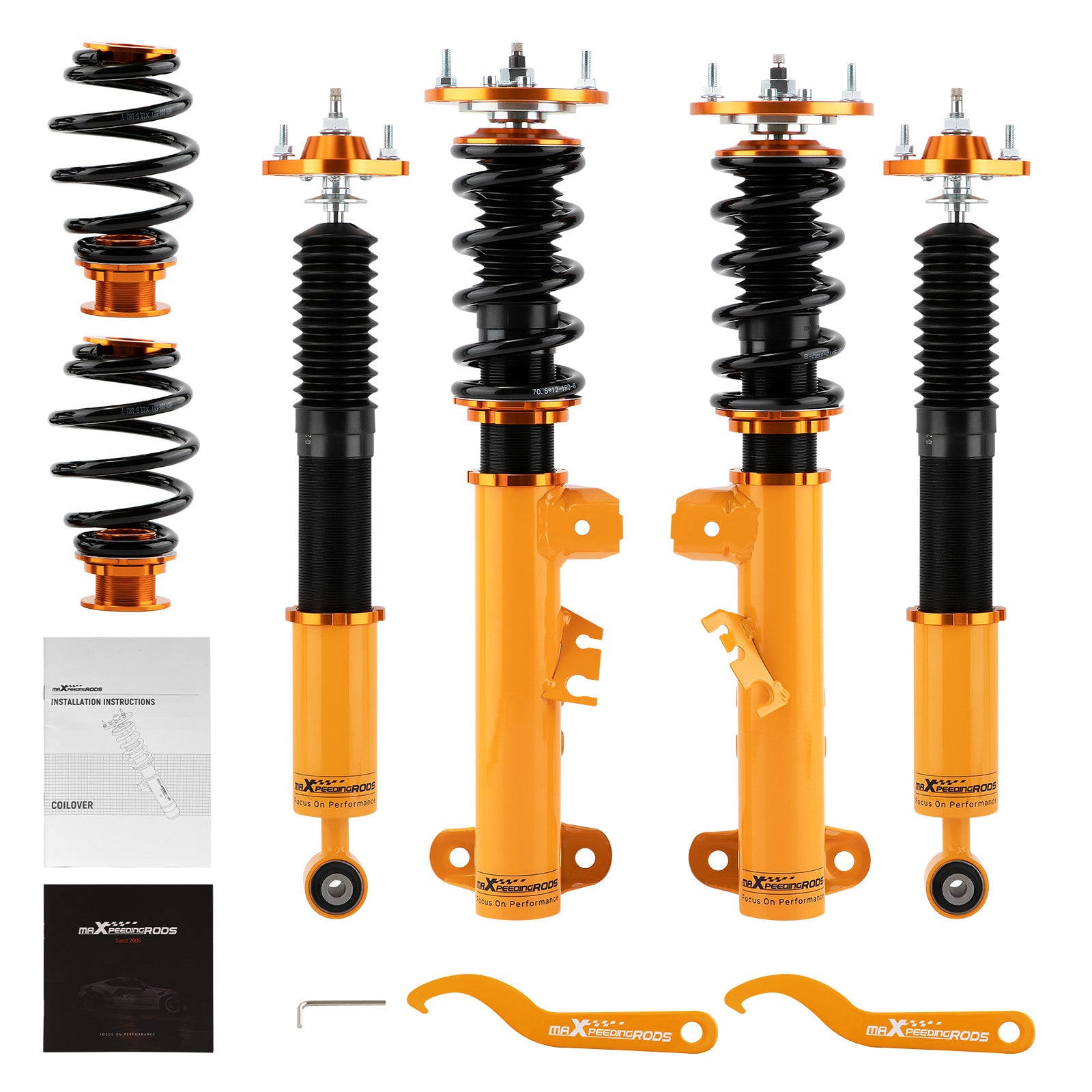

Color: gold Package includedcomplete coilovers 2 front and 2 rear

a pair wrench for height adjustment Dimensionweight: 27260g

size: 71*51*21 cm Kenmerken1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Twin-Tube structure allows sufficient stroke within the shock absorber

4. Separate height adjustment does not affect damper stroke

5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.

6. Height Adjustment tools included

7. Camber plate top mounts help to eliminate the need for a separate camber kit

8. Pillow ball top mount - It improves the steering feel and response

9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

10. Full rebuildable
