Coil Springs Coilovers compatible for BMW 5 series E60 Saloon RWD 525i 550i 535i 2004-10

Dit MaXpeedingRods onderdeel is geschikt voor BMW-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

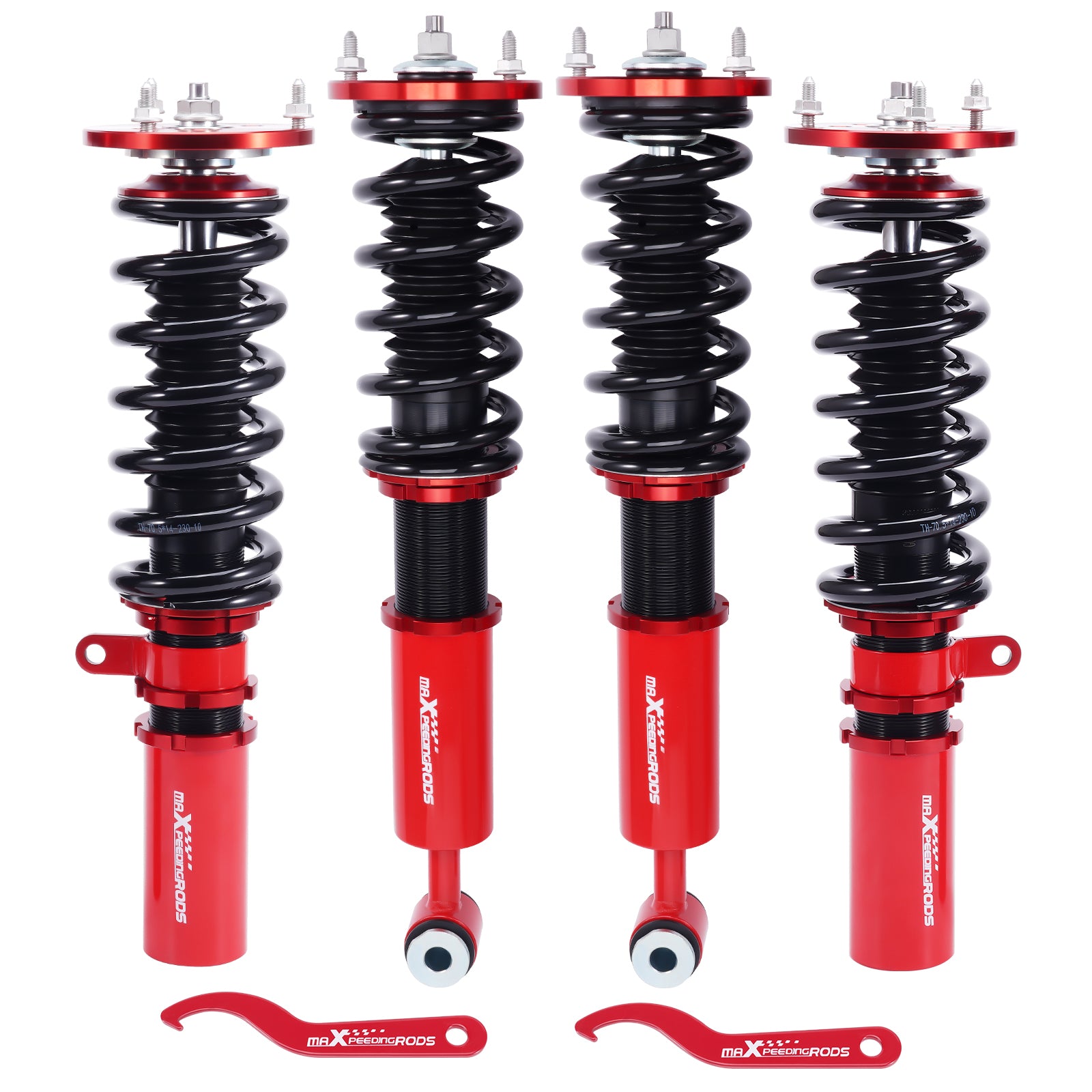

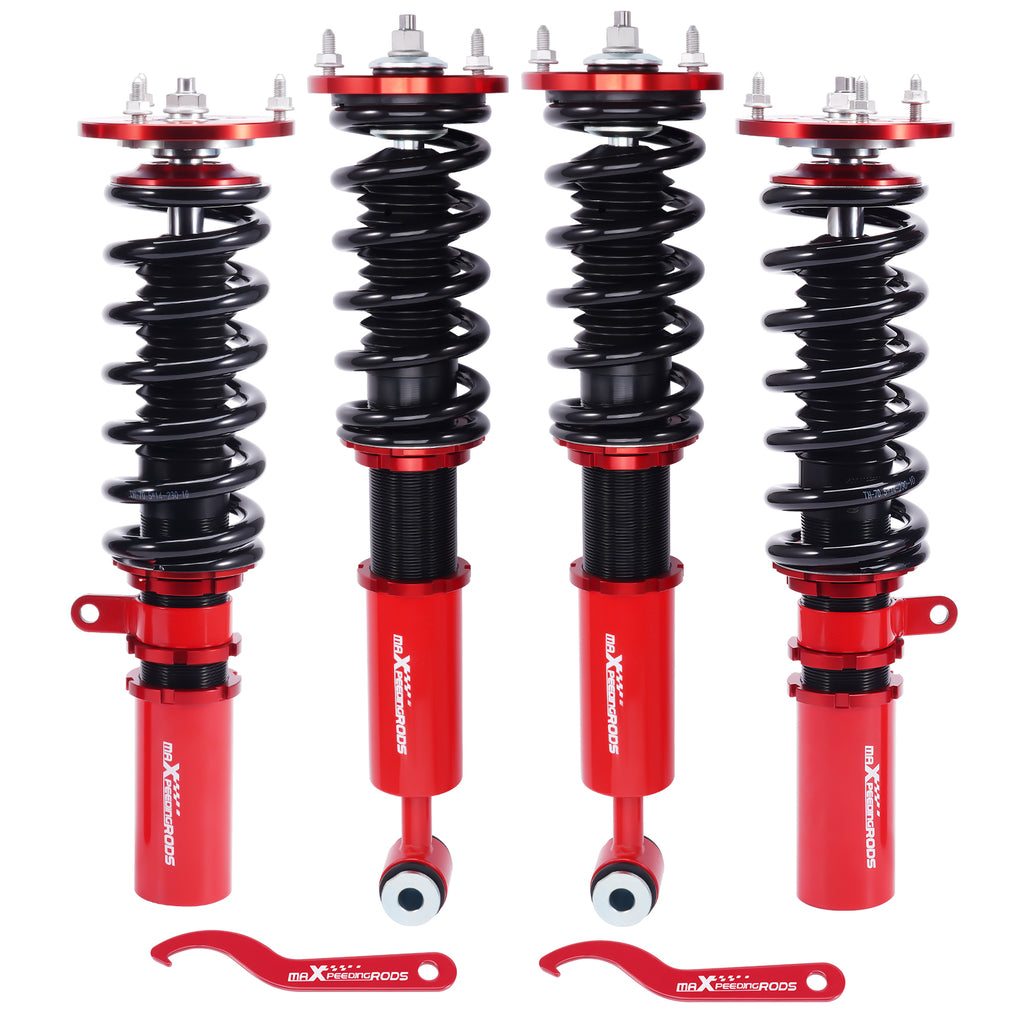

Introduction MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),which offer you a lowered stance, and improved performance for your daily use vehicle.Toepassing Geschikt voor BMW 5 series E60 2004-2010 Sedan RWD

model: 520i,525i,528i,530i,535i,545i,550i,520d,525d,530d,535d

Let op: will not fit M models.Specificaties Damping adjustable: Not available

Camber adjustable: Not available

Front top mount: Pillow ball

Rear top mount: Standard rubber

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring Rate Front: 10 kg/mm(560 lbs/in)

Spring Rate Rear: 7 kg/mm(392 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 230 mm

Spring length Rear: 200 mm

Spring Preload advised: 7-10 mm

Color: Red body with black spring Package included Package included：

2x Front coil-overs

2x Rear coil-overs

2x C spanners Dimension Package size: 71*51*21 cm

Weight: 27250 g Kenmerken1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminumtop mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts Notice Notice:

1. Installation Requirement: Use spacers to prevent movement of rubber boots when installing eye-type coilovers.

2. Regular Inspection: Rubber boots typically last 1-3 years, depending on factors such as vehicle weight, road conditions, climate, and driving habits.Inspect them every six months or during routine maintenance, and replace them immediately if any damage or signs of aging are observed.

3. Garantie Coverage Notice: Normal wear and tear on rubber components is not covered by warranty.
