Assembly Coilovers Kit compatible for Toyota Corolla 88-99 E90 E100 E110 Adj Camber PUK Lowering Kit

Dit MaXpeedingRods onderdeel is geschikt voor Toyota-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Introduction MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),which offer you a lowered stance, and improved performance for your daily use vehicle.Toepassing Geschikt voor Toyota Corolla E90 1987–1992

geschikt voor Toyota Corolla E100 1991–1998

geschikt voor Toyota Corolla E110 1995–2002

geschikt voor Toyota Corolla AE92 1987–1991

geschikt voor Toyota Corolla AE101 1992-1998

geschikt voor Toyota Corolla AE111 1988-2002 Specificaties Front top mount: Pillow ball with camber plate

Rear top mount: Pillow ball

Damping adjustable: Not available

Camber adjustable: Available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 180 mm

Spring length Rear: 230 mm

Spring Preload advised: 7-10 mm

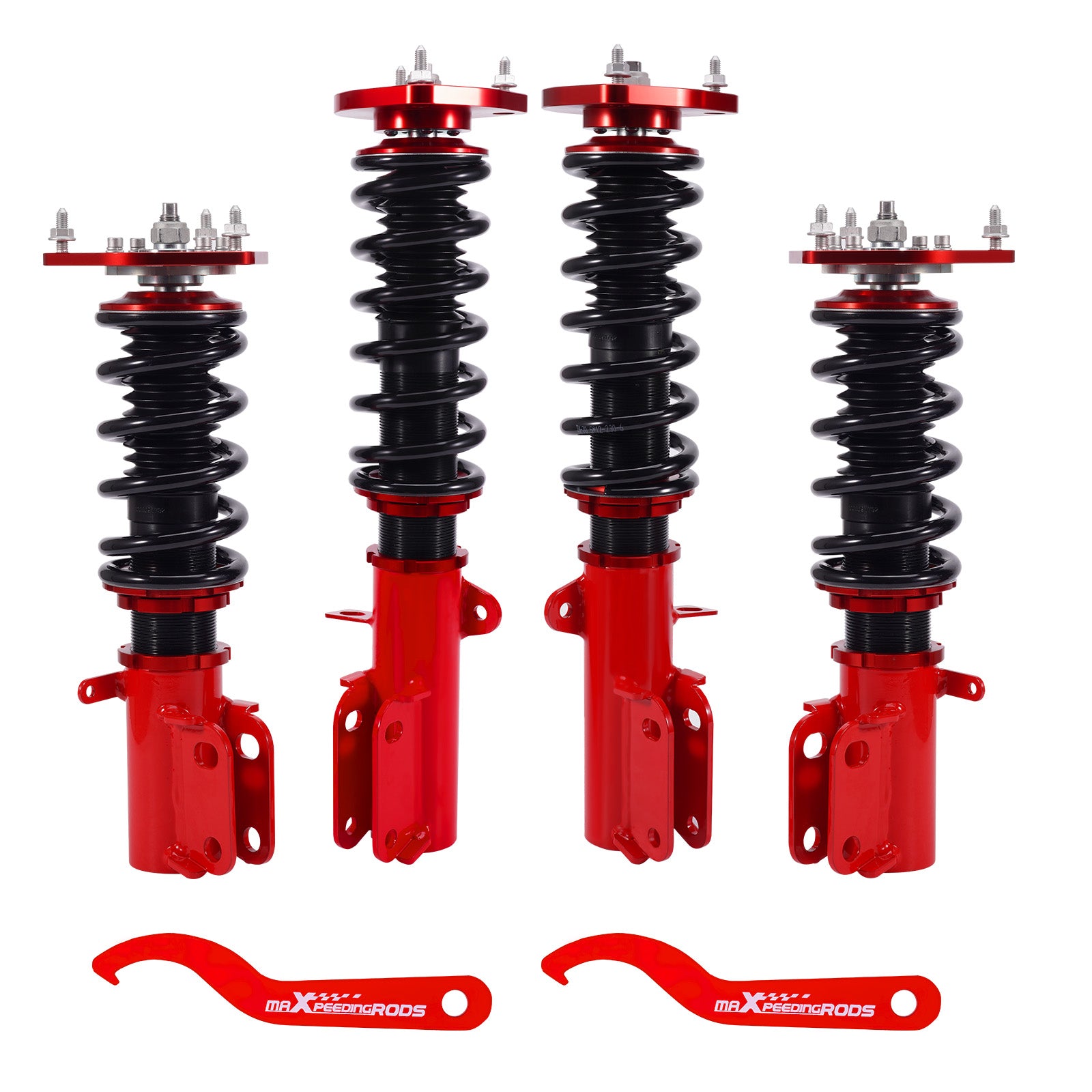

Color: Red body with black spring Package included Package included：

2x Front coil-overs

2x Rear coil-overs

2x C spanners Dimension Package Size: 64*50*20 cm

Weight: 27050 g Kenmerken1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminumtop mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts Let op1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
