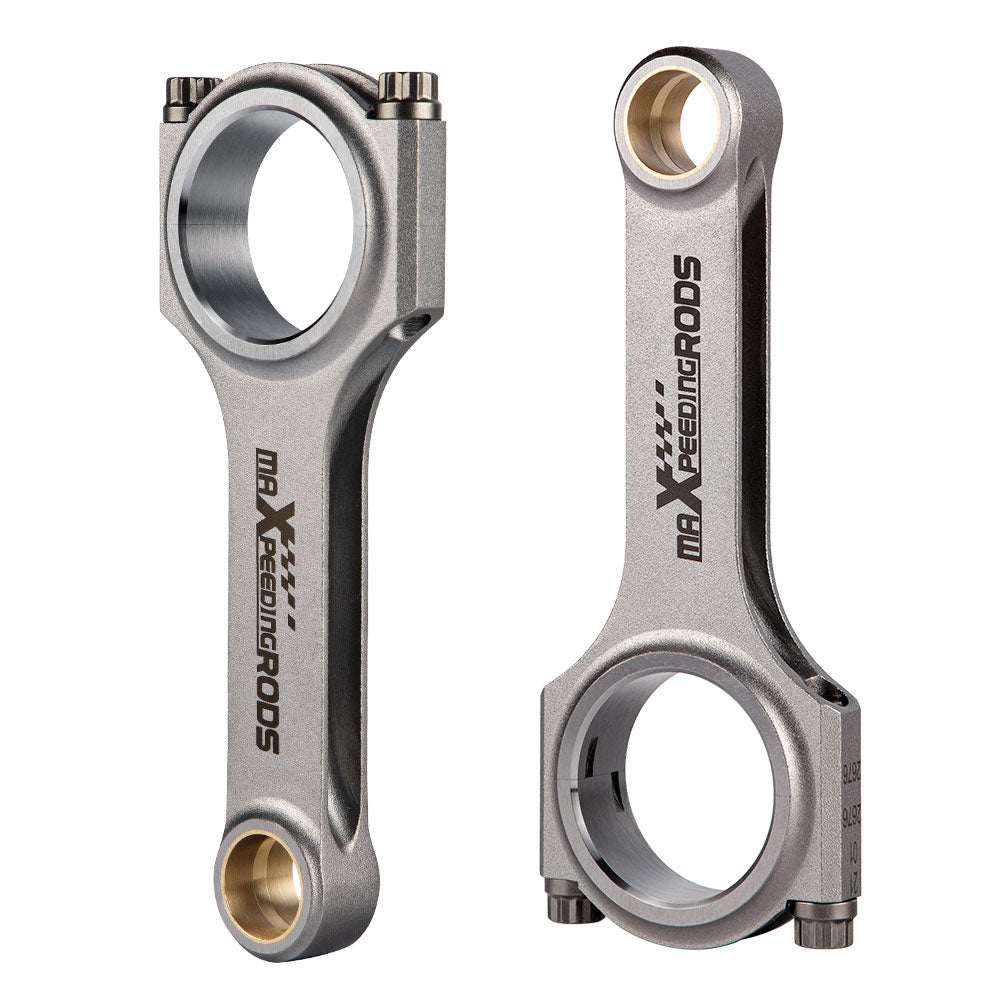

Compatible for Fiat 500 Old Model 2 Cylinder 124mm H-Beam Connecting Rods Conrods

Dit MaXpeedingRods onderdeel is geschikt voor Fiat-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Toepassing Geschikt voor Fiat 500 Old Model 2 Cylinder 124mm Specificaties Performance Con Rods Type: Forged 4340 aircraft chrome moly quality steelH-beam Conrods Quantity: 2 Pieces as showing in picture Bolts: Including Genuine ARP 2000 5/16" bolts  (Let op: Extra cost for upgrading to ARP L19 bolts)Tolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600hp ~ 800hp per set Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM Top acceleration: 7000-9000rpm warranty: one year warranty for any manufacturing defect Dimensions Center to center length: 124mm Big end diameter: 47.13mm Small end diameter: 20mm Big end width: 24.7mm Small end width: 18.5mm Kenmerken- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing- Designed and processed by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pin Let op- Professional installation is highly recommended (No Instruction Included)- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
