Compatible for BMW S38 S38B35 S38B36 S38B38 e24 e34 e28 144mm ARP2000 Connecting Rod Rods

Dit MaXpeedingRods onderdeel is geschikt voor BMW-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Toepassing Geschikt voor BMW S38 B35 1988 M5 M6geschikt voor BMW S38: straight-6 DOHC piston engineS38B351986 - 1988, geschikt voor BMW E28 M5 (NA spec), geschikt voor BMW E24 M6 (NA spec),;Geschikt voor BMW E24 M635CSi withcatalytic converterS38B36 1989 - 1993geschikt voor BMW E34 M5 (NA spec) and Euro spec 1989–1992S38B38 1992 - 1996geschikt voor BMW E34 M5 Kenmerken- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine

Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

100% X-rayed, sonic tested and magnafluxed

Multi-stage heat treated

Shot peened to relieve stress

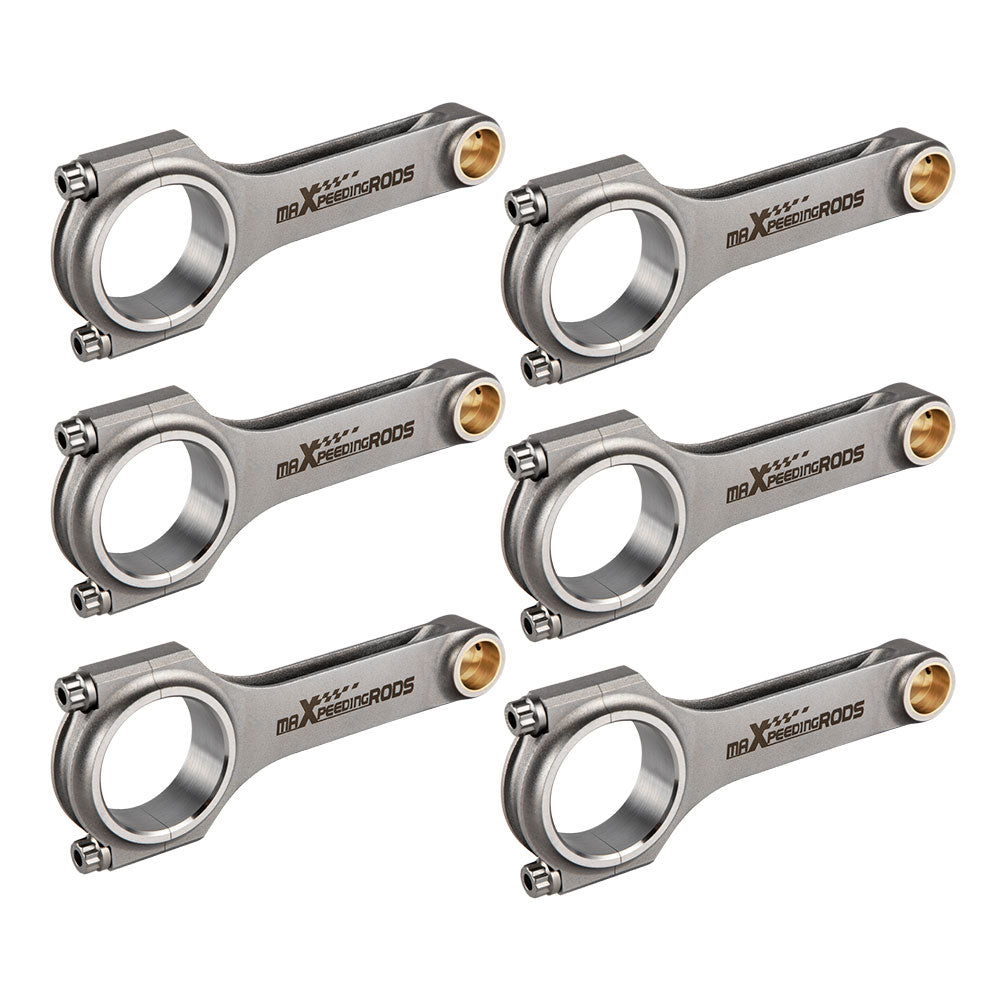

Come with the bronzed bushing suitable for the floating piston pin Dimensions Center to center length: 144mm Big end diameter: 52mm Small end diameter: 22mm Big end width: 24mm Small end width: 24mm Specificaties- TÜV Certification Con Rods- Type: Forged 4340 aircraft chrome moly quality steel for racing- H-beam Conrods Quantity: 6 Pieces as showing in the picture- Bolts: Including ARP 2000 bolts- Let op: Extra cost for upgrading to ARP L19 bolts - Bolts Size: ARP 2000 3/8" bolts- Tolerance: Balanced to +/- 1 gram inset - Piston Bolt Hole: +-4/1000mm - Power: 600hp ~ 800hp per set - Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM - Top acceleration: 9000rpm - Garantie: one year warranty for any manufacturing defect Let op- Professional installation is highly recommended (No Instruction Included)

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
